Quality Ball Bearing Windsock Frame

Rugged construction. Effortless movement.

A heavy-duty, USA-made windsock frame designed for reliable airport and airfield use.

Manufactured in the USA, these airport windsock frames are constructed from welded steel with a powder-coated finish for corrosion protection. A two-bearing design allows the frame to pivot freely and respond smoothly to changing wind direction.

Key Features:

• Rugged welded steel construction
• Powder-coated finish for corrosion protection
• Two-bearing design for smooth, effortless pivoting
• Designed for airport and airfield applications
• Multiple diameters available to suit different windsock sizes
• Made in the USA

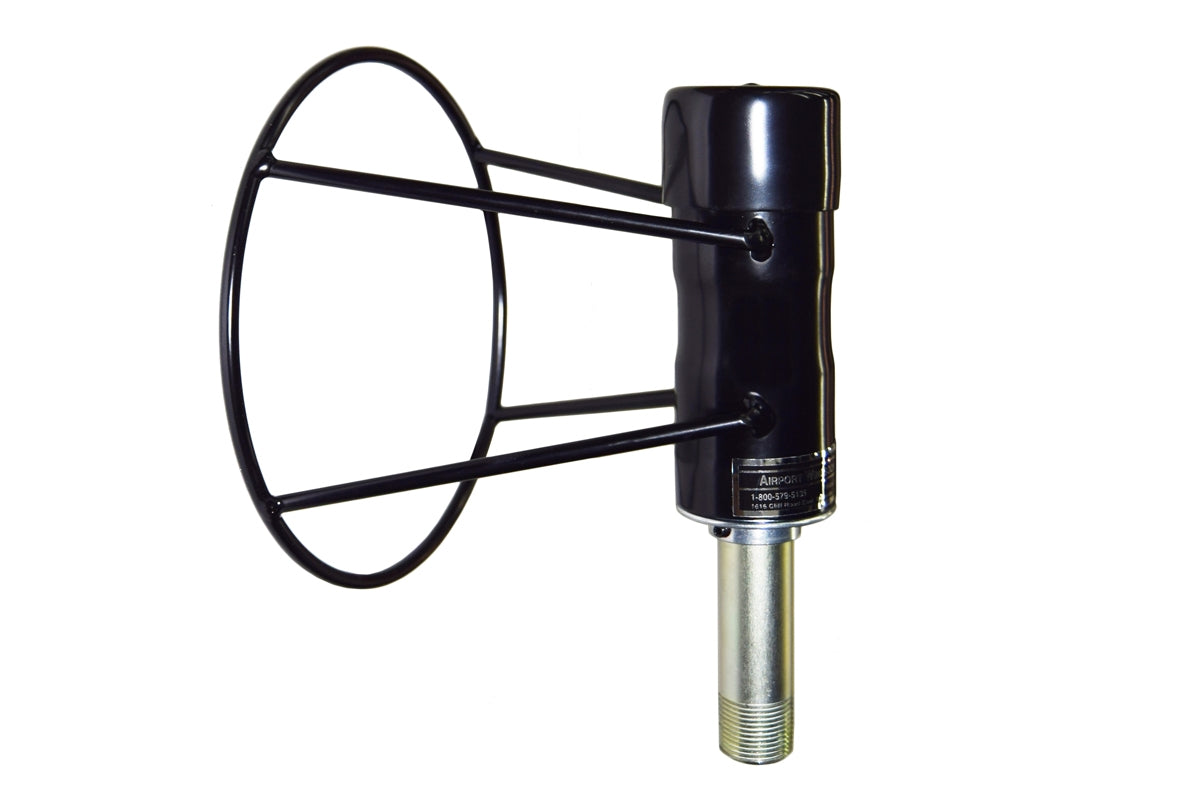

• 8" (20 cm)
• 13" (33 cm)
• 18" (46 cm)
• 20" (51 cm)

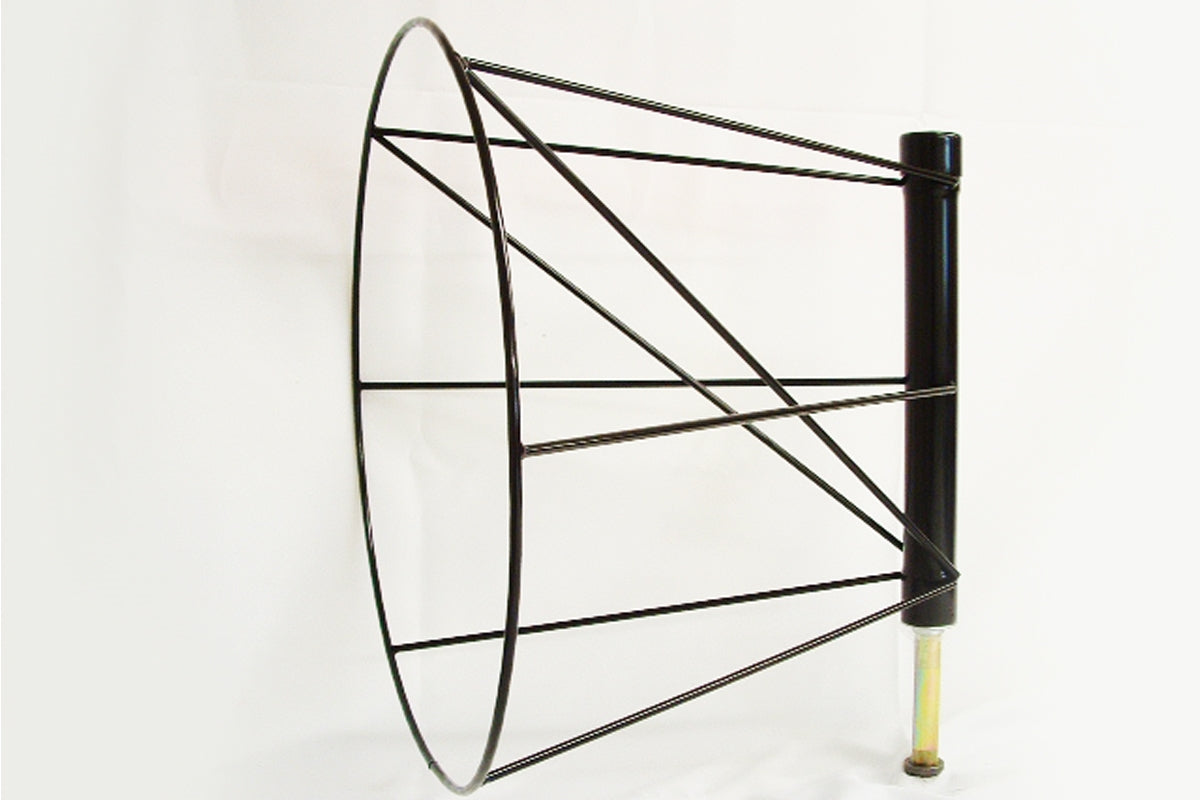

• 24" (61 cm)

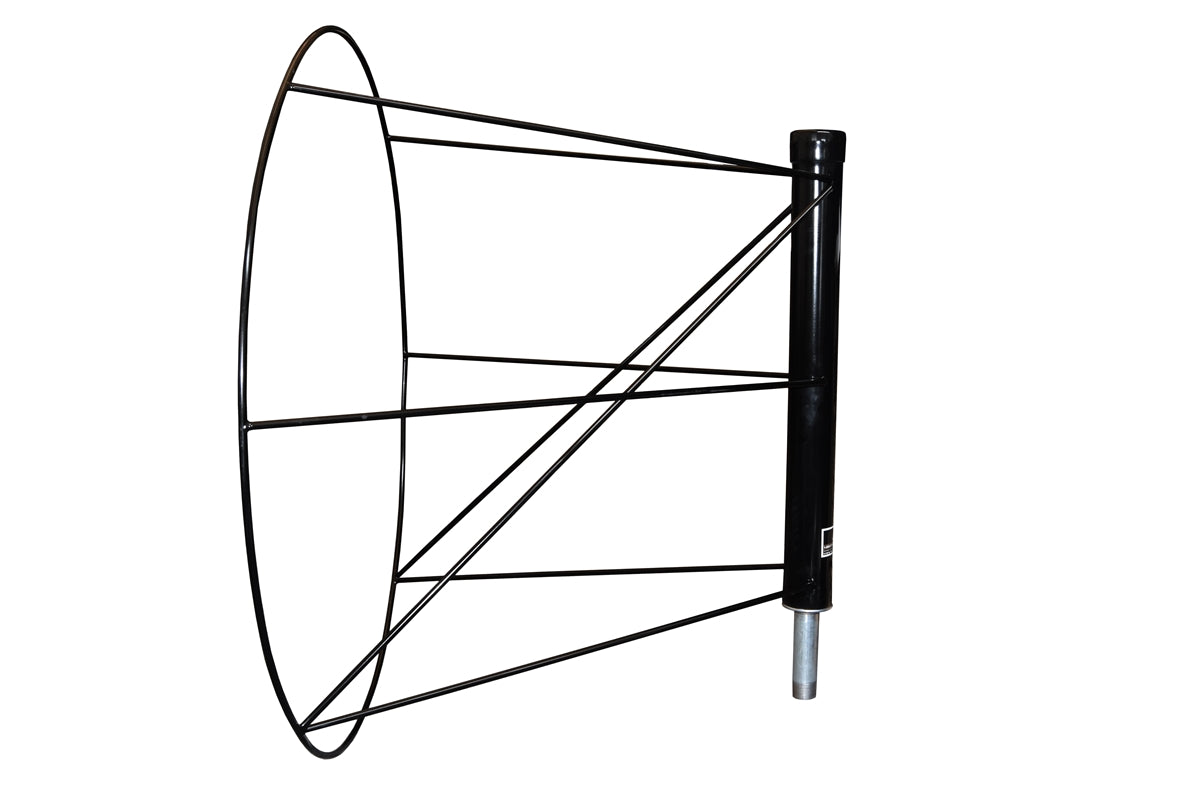

• 36" (91 cm)

Mounting: 8", 13", 18" and 24" frames are designed for a ¾" female pipe thread. The 36" frame uses a 1" pipe thread.

Fitting Instructions:

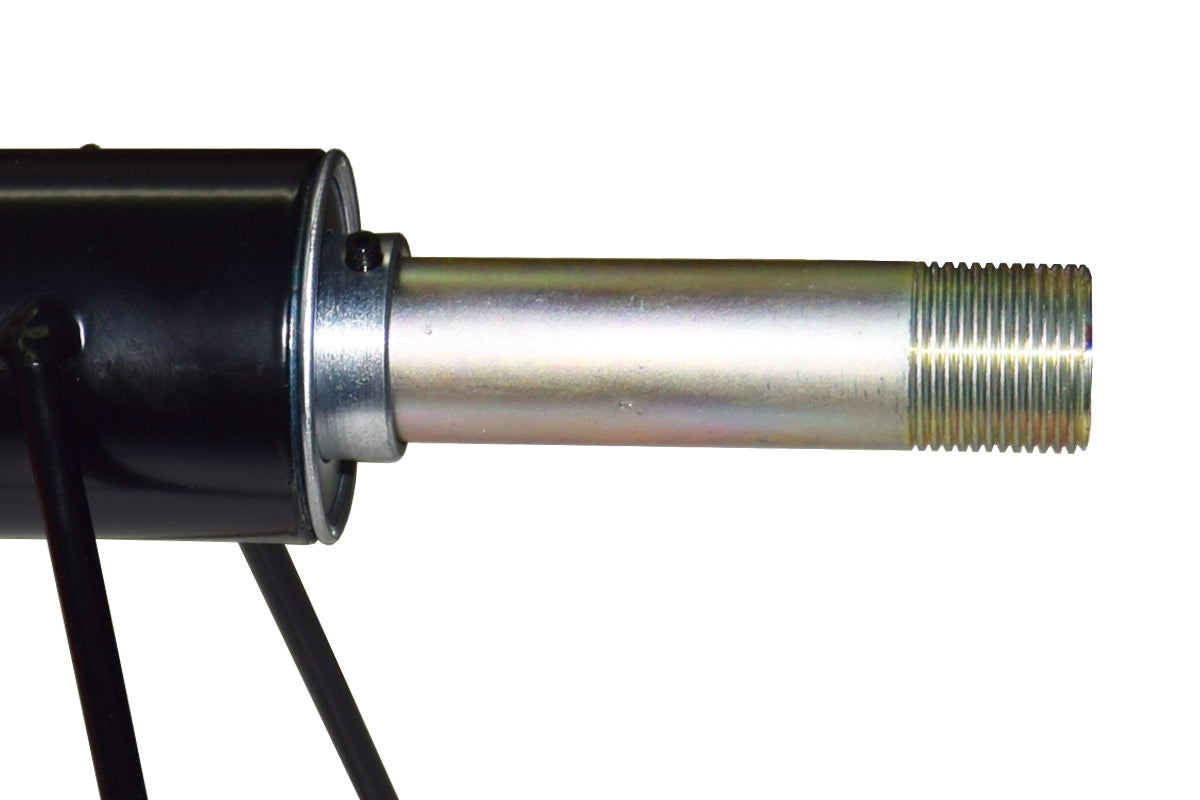

• Insert the 1" riser pipe extending from the bottom bearing into a 1-1/4" OD (1-1/8" ID) water pipe at the top of the existing pole.
• A washer may be fitted over the riser pipe if desired, allowing the pole to rest against the washer.
• The bearing nipple, where the set screw secures the bearing to the riser pipe, will rest on the 1-1/4" OD pipe or washer.
• If the existing pole is significantly larger than 1-1/4" OD, ensure the riser pipe is supported so it cannot rock from side to side.

This mounting method does not affect bearing operation and makes removing the frame easier when replacing the windsock.

Important Ordering Information:

Windsock sold separately.

Larger frames may incur an additional oversized shipping charge. If applicable, the final freight cost will be calculated after ordering and we'll contact you to discuss it.

The 36" frame is generally available by special order and may not be held in stock. Place your order online or contact us for availability and further information.
