Airservices World Aeronautical Charts
Scale: 1:1,000,000
These Australian charts are part of the ICAO 1:1,000,000 international series. Designed for pre-flight planning as well as pilotage, WAC are constructed using Lambert's conformal conic projection and conform to ICAO specifications. WAC charts generally do not show much aeronautical data. Only aerodrome names and locations, and restricted/danger areas are included.
When would I use a WAC?:
World Aeronautical Charts (WAC) are designed primarily for pre-flight planning and visual navigation (VFR - Visual Flight Rules) for aircraft flying at moderate to high speeds and long distances.
Specifically, they serve several distinct purposes:
- Long-Distance VFR Cross-Country Navigation: Drawn at an ICAO standard 1:1,000,000 scale (where 1 cm represents 10 km, or roughly 1 inch to 14 nautical miles), they cover large geographical areas per sheet. This allows pilots flying cross-country to navigate without constantly having to switch charts.
- Visual Landmark Identification: They depict significant geographical features identifiable from moderate to high cruise altitudes—such as mountain ranges, major rivers, coastlines, lakes, primary highways, railway networks, and large towns or cities.
- Relief and Terrain Clearance: They use standard topographic contours, elevation tints, and spot heights to help pilots determine safe altitudes and maintain clearance from high terrain.
- Basic Aeronautical Infrastructure: They highlight essential navigation data, including aerodromes, major controlled airspace boundaries, prohibited/restricted areas, visual checkpoints, and major radio navigation aids.
-
Pre-Flight Route Planning: Due to their wide regional coverage, they are frequently used before a flight to draw courses, measure distances, calculate headings, and check fuel requirements across states or remote regions like the Australian outback.
Available WAC Charts:

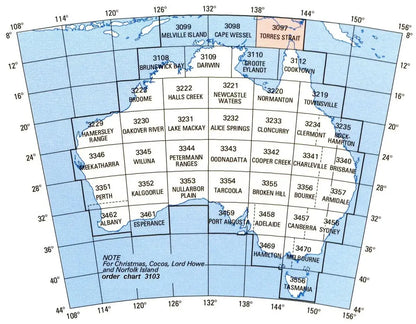

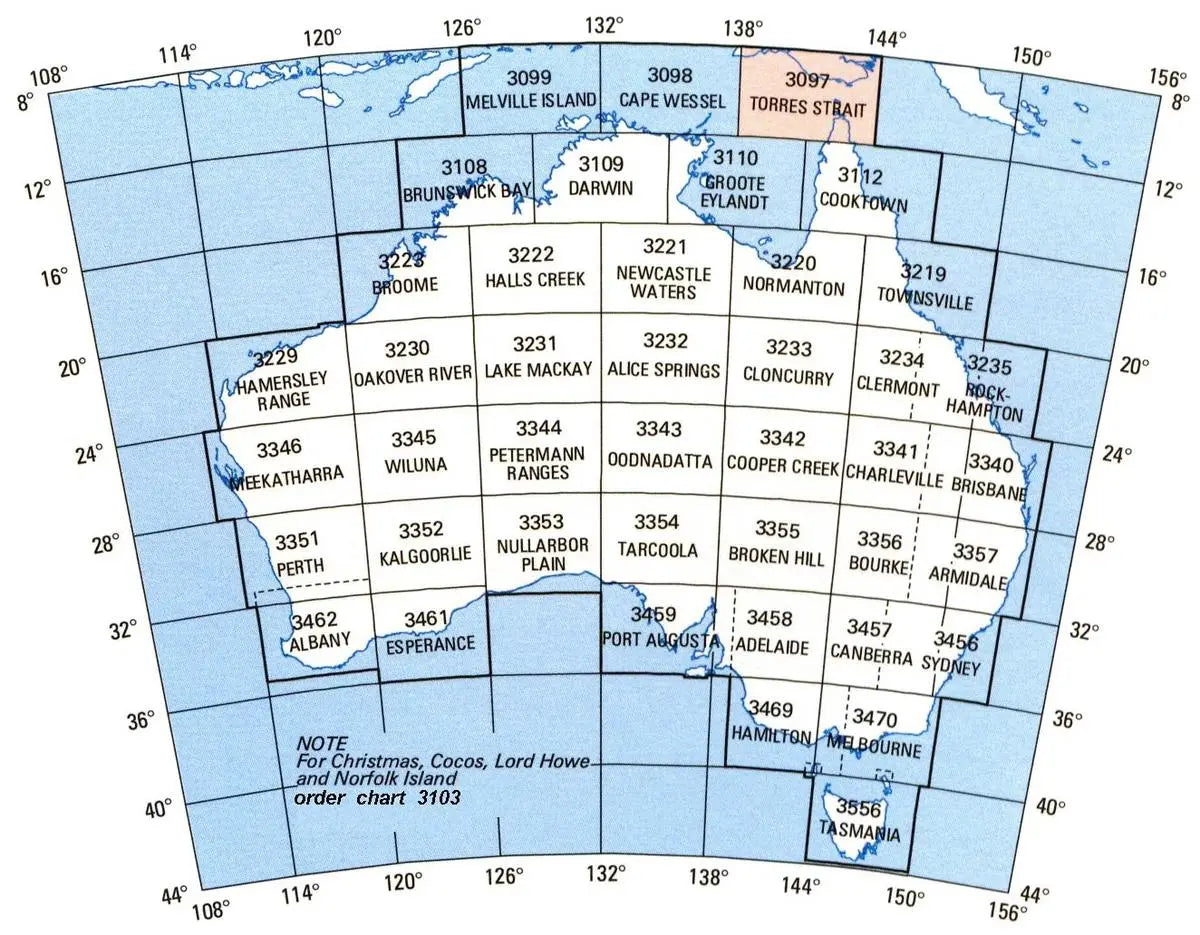

You can also check the chart coverage map within the product images above.
| Chart Name | Chart Number | Edition Number |
|---|---|---|
| Adelaide | 3458 | 21 |
| Albany | 3462 | 21 |
| Alice Springs | 3232 | 19 |
| Armidale | 3357 | 22 |
| Bourke | 3356 | 18 |
| Brisbane | 3340 | 23 |
| Broken Hill | 3355 | 19 |
| Broome | 3223 | 16 |
| Brunswick Bay | 3108 | 16 |
| Canberra | 3457 | 21 |
| Cape Wessel | 3098 | 17 |
| Charleville | 3341 | 19 |
| Clermont | 3234 | 19 |
| Cloncurry | 3233 | 18 |
| Cooktown | 3112 | 21 |
| Cooper Creek | 3342 | 21 |
| Darwin | 3109 | 21 |
| Esperance | 3461 | 18 |
| Groote Eylandt | 3110 | 20 |
| Halls Creek | 3222 | 19 |
| Hamersley Range | 3229 | 21 |
| Hamilton | 3469 | 22 |
| Kalgoorlie | 3352 | 18 |
| Lake Mackay | 3231 | 18 |
| Meekatharra | 3346 | 18 |
| Melbourne | 3470 | 22 |
| Melville Island | 3099 | 17 |
| Newcastle Waters | 3221 | 18 |
| Normanton | 3220 | 19 |
| Nullabor Plain | 3353 | 19 |
| Oakover River | 3230 | 20 |
| Oodnadatta | 3343 | 20 |
| Perth | 3351 | 23 |
| Petermann Ranges | 3344 | 18 |
| Port Augusta | 3459 | 21 |
| Rockhampton | 3235 | 21 |
| Christmas Island (Special Island Coverage) | 3103 | 13 |
| Cocos (Keeling) Island (Special Island Coverage) | 3164 | 13 |
| Lord Howe Island (Special Island Coverage) | 3358 | 13 |
| Norfolk Island (Special Island Coverage) | 3359 | 13 |
| Sydney | 3456 | 22 |
| Tarcoola | 3354 | 19 |
| Tasmania | 3556 | 21 |
| Torres Strait | 3097 | 17 |
| Townsville | 3219 | 23 |
| Wiluna | 3345 | 18 |
WAC Chart Updates:
- No Regular Fixed Cycle: Unlike Visual Terminal Charts (VTC) or Visual Navigation Charts (VNC)—which follow strict 6-month or annual AIRAC review schedules—World Aeronautical Charts (WACs) do not update on a fixed calendar cycle.
- As-Needed / Event-Driven Basis: Airservices Australia updates and prints a new edition of a specific WAC chart only when significant aeronautical changes occur within that coverage area (e.g., major airspace redesigns, new high-risk vertical obstructions, or extensive topographic changes).
- Variable Frequency: High-traffic areas (such as Brisbane, Melbourne, or Sydney) receive new editions roughly every 2 to 4 years, while remote interior charts (such as Lake Mackay, Brunswick Bay, or Meekatharra) often remain current for 5 to 8+ years before a new edition is issued.
- Checking Current Editions: Pilots and chart retailers verify current validity via the Airservices Australia AIP / Aeronautical Information Package amendments list and the Chart Updating Service (CUS), which publishes critical errata and amendments between physical print editions. Downunder Pilot Shop always maintains and distributes the latest edditions.
