Electronic CO/CO2 Detector

In CO Detectors by Downunder Pilot Shop
In stock
Type
$145
$145

Pickup Available

at Bankstown, Sydney

Get direction

Description

When safety comes first, you need a reliable carbon monoxide detector in any piston-powered aircarft.



This CO and CO2 detector has been designed by engineers who specialise in gas detection. With a 7 year useful lifespan and USB-C rechargable battery, this device is first in class for compact CO and CO2 detection.

  • Customisable alarm levels - set at what gas concentrations alarms become audible.
  • Temperature and Humidity sesnors.
  • Mounting dock/cradle
  • Rechargeable

Two Models:

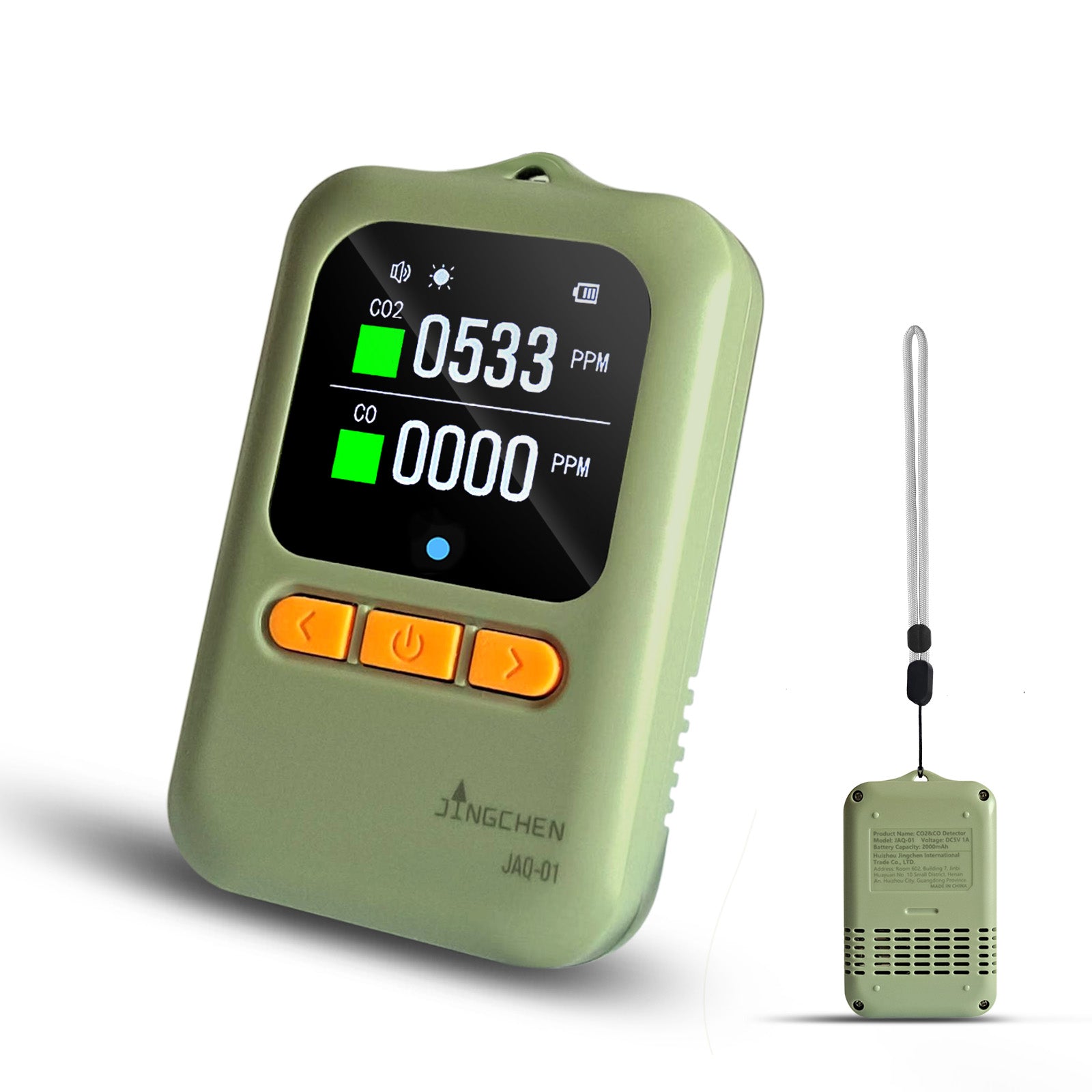

JAQ-01: Detects both CO2 & CO as well as Temperature & humidity

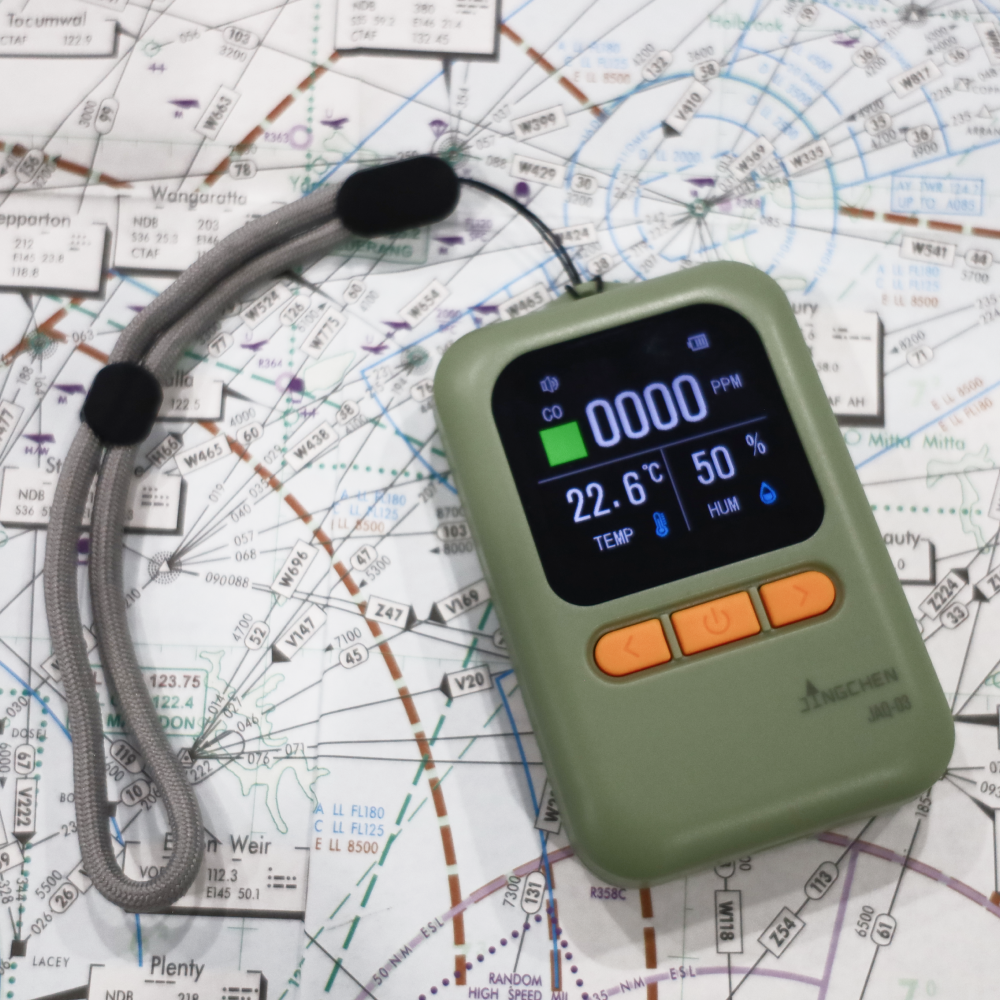

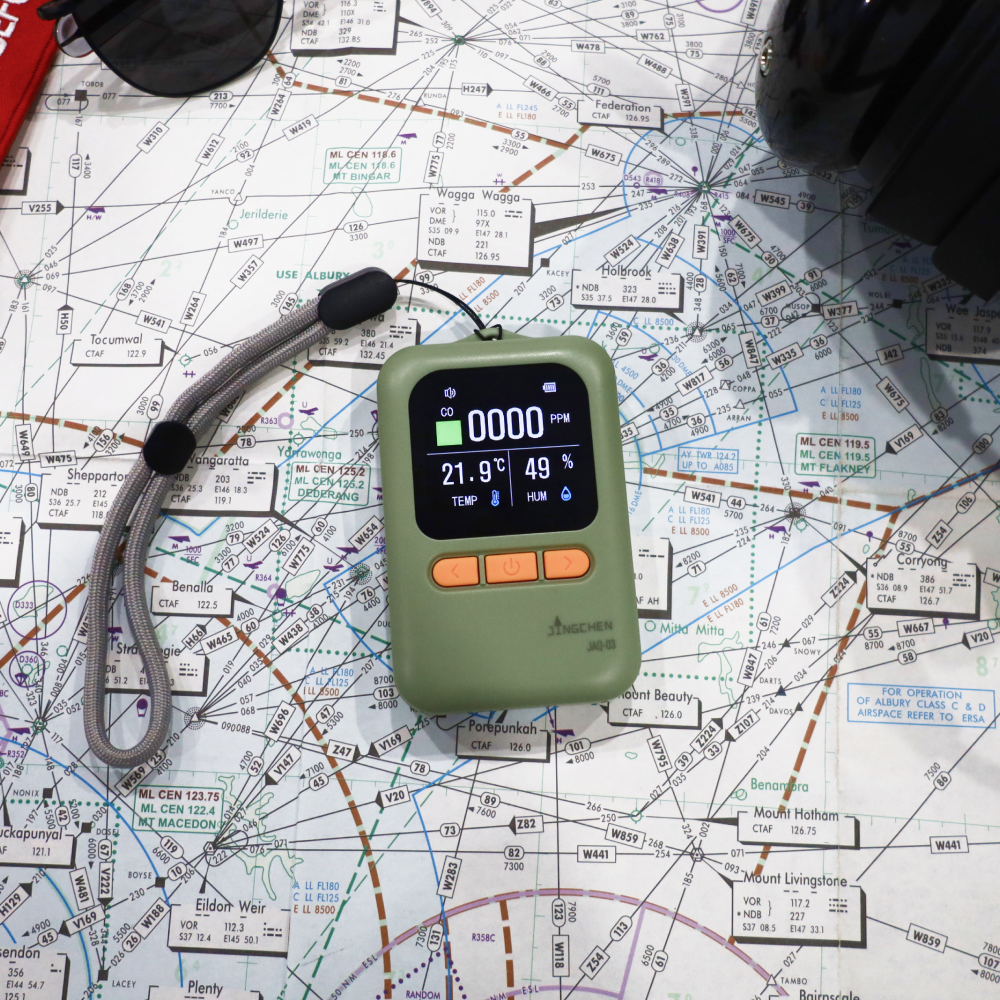

JAQ-03: Detects only CO as well as Temperature & humidity

Model Specifications:

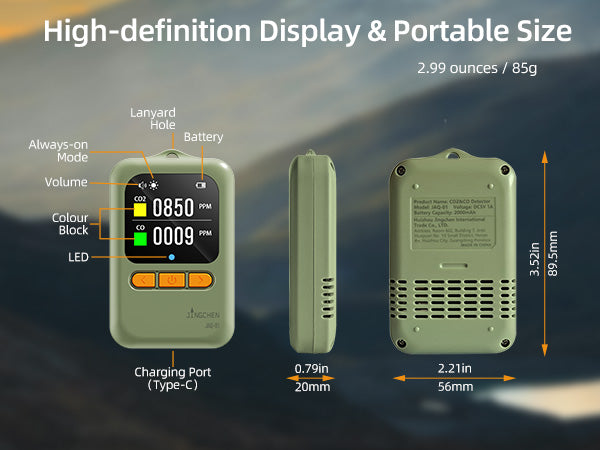

  • Size: 56 x 88.5 x 20mm (without holder)
  • Weight: 85g (without holder)
  • Case Material: ABS Plastic
  • Operating Temperature Range: -10°C ~ 50°C
  • Operating Humidity Range: 10% ~ 95% Relative Humidity
  • Warranty: 2 Years

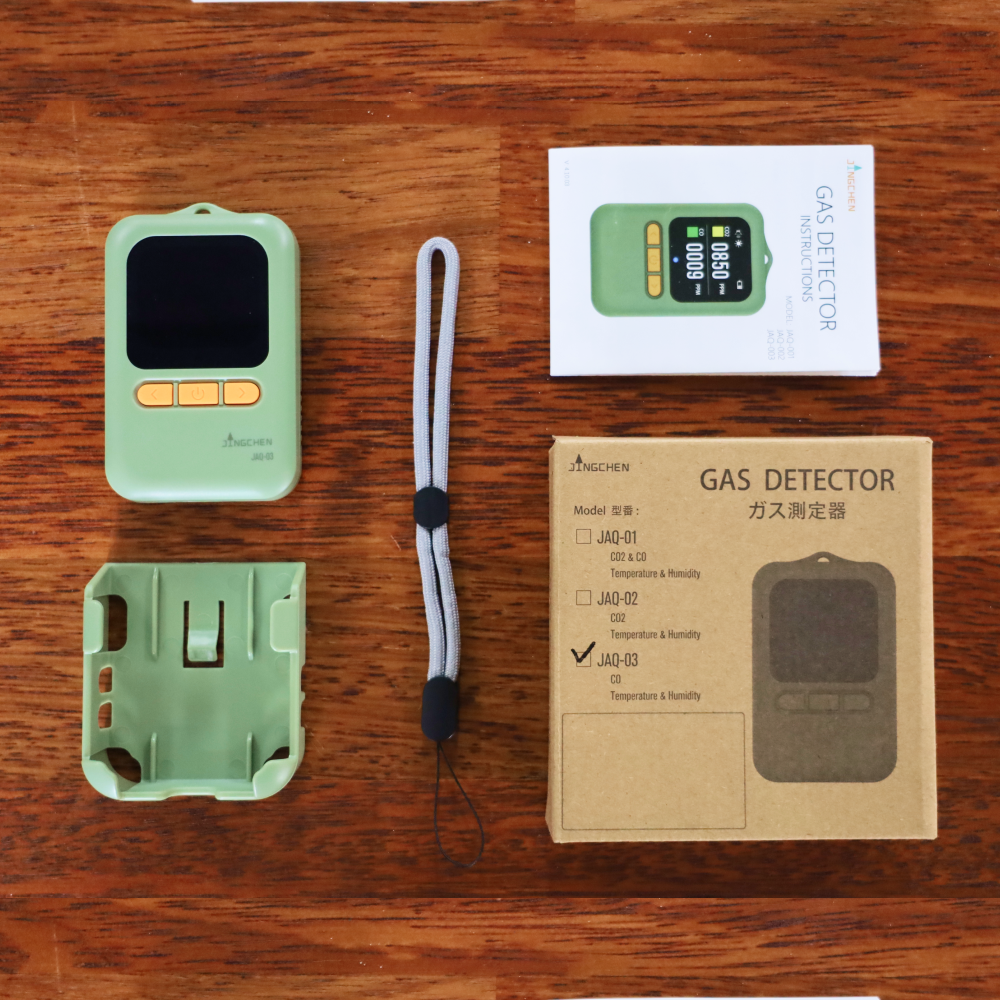

In The Box:

  • The Gas Detector Unit
  • USB C - Charging Cable
  • Instruction manual
  • Unit holder/cradle with separate adhesive mounting tape
  • Lanyard

CO2 Specifications

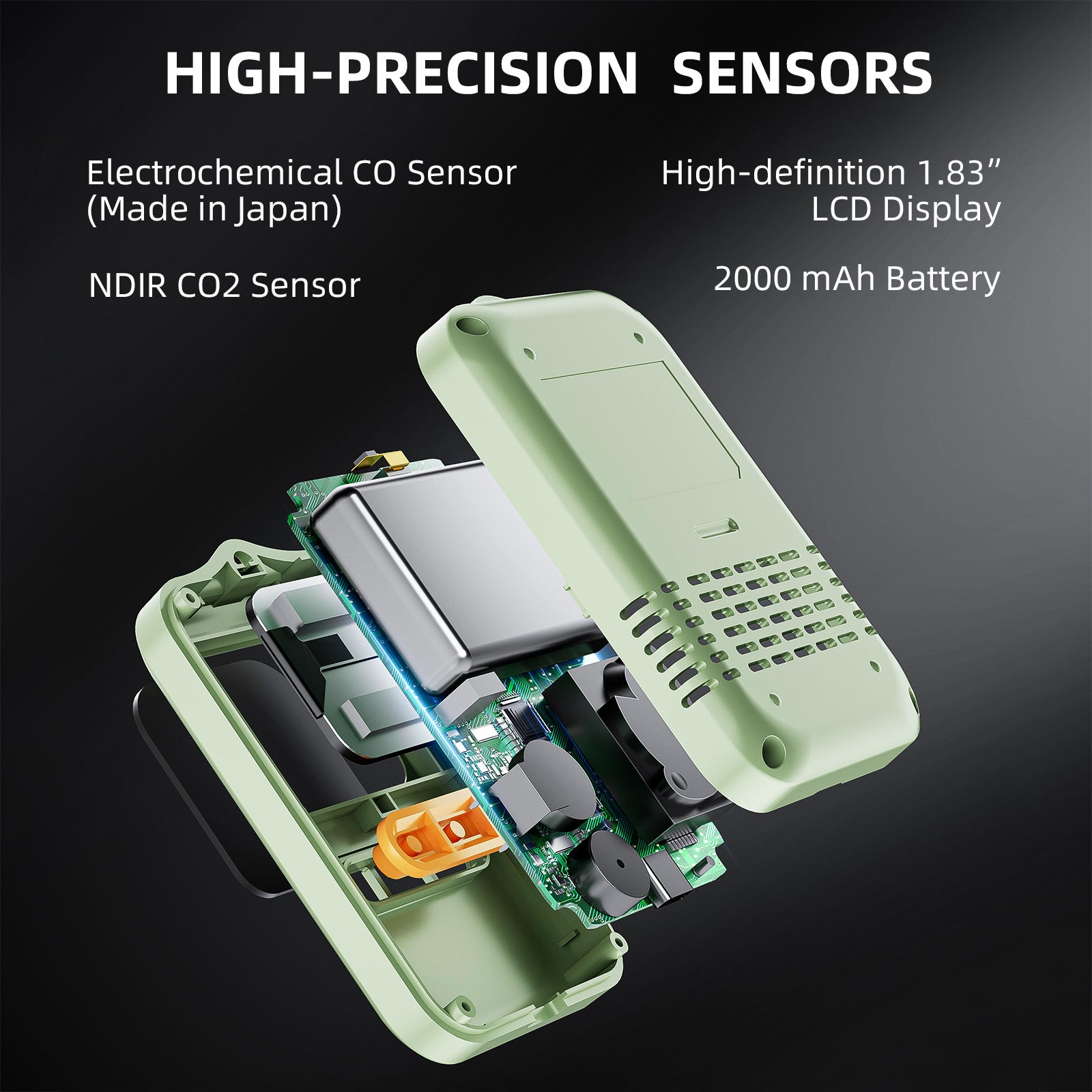

  • CO2 Sensor: NDIR (Only on JAQ-01)
  • CO2 Measurement Range: 400 ~ 5000 ppm
  • CO2 Accuracy: +/- 50ppm

CO Specifications

  • CO Sensor: Electrochemical (Made in Japan)
  • CO Measurement Range: 0 ~ 1000 ppm
  • CO Accuracy: +/- 15%

Temperature Specifications

  • Temperature / Humidity Sensor: MEMS
  • Temperature Measurement Range: -40°C ~ +125°C
  • Temperature Accuracy: +/- 1°C

Humidity Specifications

  • Temperature / Humidity Sensor: MEMS
  • Humidity Measurement Range: 0 ~ 100%RM
  • Humidity Accuracy: +/- 5%

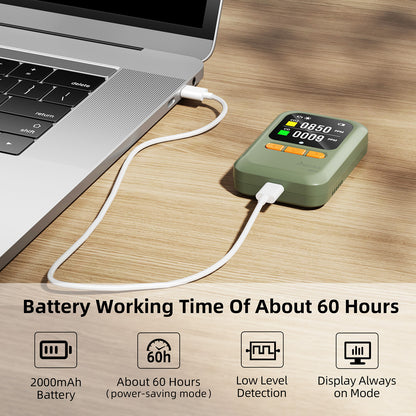

Battery, Charging and Life

  • Battery: 2000mAh
  • Battery Charging: USB-C, DC 5V-1A
  • Charging Time: Approximately 2.5 Hours
  • Battery Life: About 60 hours in power saving mode (Depends on model, JQ-03 can be up to 120 hours)
  • Unit Lifetime: At least 7 Years with normal use

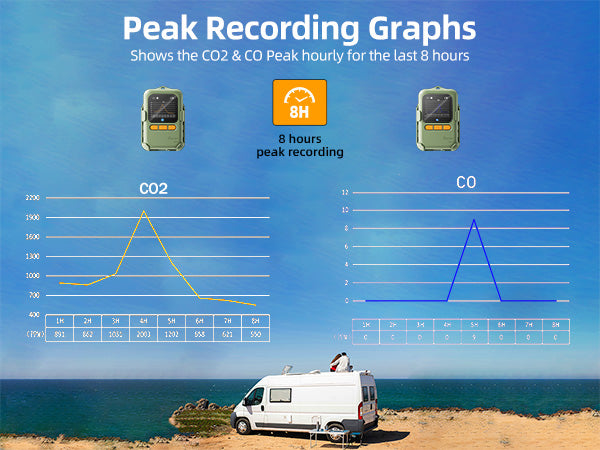

Peak Measurement Records

The unit also records peak measurements over time and displays the information on a graph.

- The JAQ-01 records and displays both CO2 and CO measurements
- The JAQ-03 records and displays only the CO measurements
