Description

Icom's Premium Aircraft Panel Mount VHF Transceiver

Innovation at it's Best.
OLED Screen with Easy Installation.

Air to Ground Panel Mount Transceiver
Icom’s A220 panel mount transceiver is a popular fit with experimental and light sport pilots. This ground-to-air transceiver can work on both 8.33 kHz and 25 kHz channel spacing frequencies. It features the brightest OLED (Organic Light Emitting Diode) display on the market, offering many advantages in brightness, vividness, high contrast, wide viewing angle, and response time compared to a conventional display. The A220 also features a built-in two-station intercom, 12 or 24-volt-compatible, automatic squelch, and GPS memory function.

The TSO approved version will work for all certified part 23 aircraft.

Other Features:

  • Dualwatch and priority watch functions
  • One touch access to 121.5 MHz emergency frequency
  • Side tone function for monitoring your voice with a headset
  • ANL (Automatic noise limiter) function reduces pulse type noise
  • Remote control capability
  • PC programming capability
  • Dial lock and panel lock
  • Time-out-timer
  • D-SUB 25-pin connector and MIL-Spec M39029/63-368 compliant socket pins
  • Slim 33 mm (1.3 inch) height can be installed in a limited panel space
  • Two types of menu mode; settings menu and configuration menu
  • Both 13.8 V and 27.5 V electrical systems compatible

Specifications:


General:

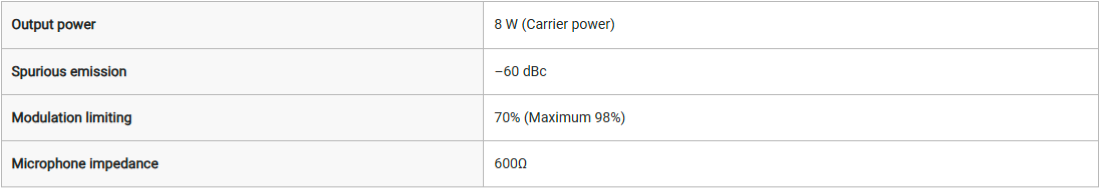

Transmitter:

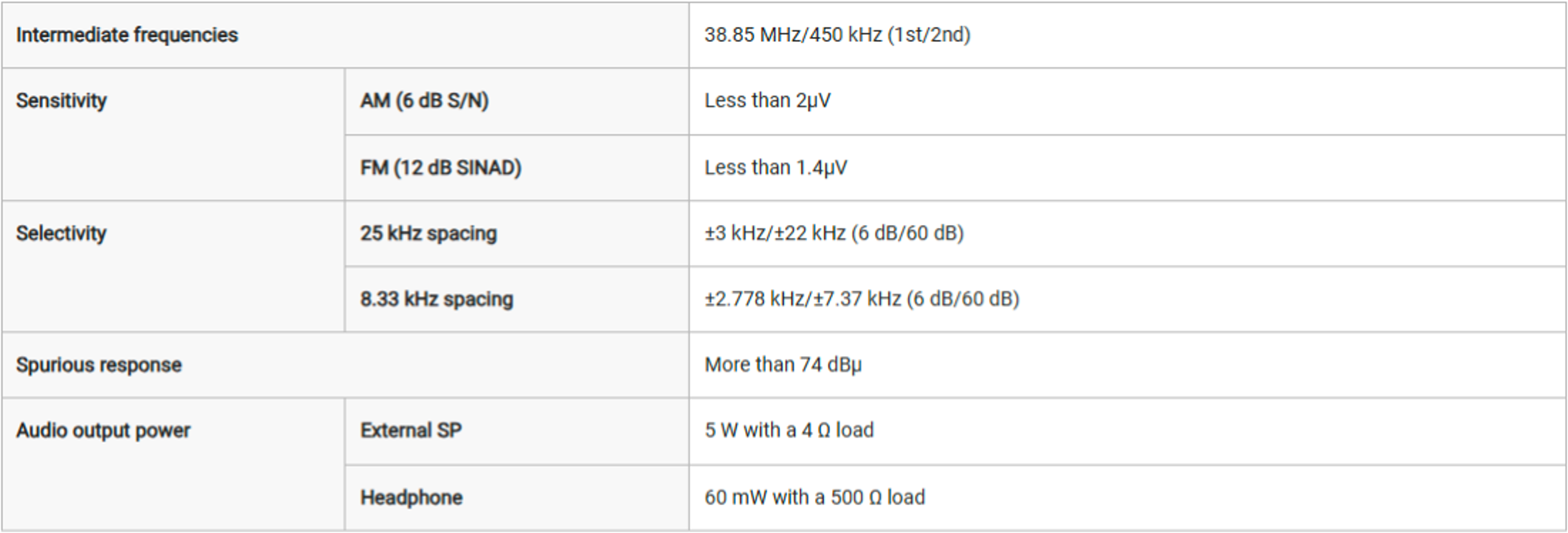

Receiver:

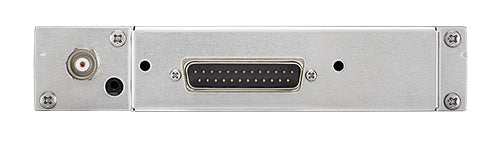

Rear Panel View:

Supplied Accessories:

  • Mounting bracket kit

We pride ourselves on our quick and reliable order fulfilment and shipping process. We have a 95% same-day order fulfilment rate, with a further 4% completed the following day. Please read below for information on shipping pricing, order fulfilment and other related details. Feel free to contact us if you have any questions.

Free Shipping*

On all orders that exceed $250 AUD in order value at the time of checkout.

Some items are exempt from this, such as the larger windsock frames. These items will specify that extra shipping may apply.

Other Freight Chargers

Our freight chargers are based on order value. See below for how much it will cost you to ship your item(s). Charges listed here are in AUD and for any order being shipped domestically within Australia.

Over $250 shipping is FREE!
Under $20 - $16.95
$20 - $99.99 - $14.95
$100 - $249.99 - $12.95

We use Australia Post with daily pickups from our Sydney (Bankstown)  warehouse at 3pm Monday to Friday

We strive to have your order out the door on the same day it was made with us. If the order was placed before 3pm on weekdays, there's a good chance it will be picked up that day. Most of our orders reach their destination within 1-3 business days.

WA and remote areas please allow a few extra days, very remote areas can be more than a week. Feel free to contact us to find out how long your parcel may take

Supply Chain & COVID-19 Impacts

Like many retailers in Australia and around the world, we are experiencing delays and shortages due to COVID which has affected staffing, shipping times and supply chains. Although we endeavour to maintain good levels of all stock, please understand that sometimes delays in shipments are outside of our control! We are working hard to get back to quick shipping and minimal delays.

Certain products like electronic components are still facing massive shortages around the world, so items like headsets and radios can sometimes take months to receive.

Need more info before making your purchase? please just give us a call or drop us an email, we are always happy to help.

PO Boxes

We can deliver to PO Boxes with Australia Post

International Shipping

We ship worldwide - shipping will be calculated at the checkout.

All duty and customs charges are the responsibility of the customer

High Visibility OLED Screen

The OLED (Organic Light Emitting Diode) emits light from itself, so a display backlight is not required. It provides higher contrast, wider viewing angle of almost 180 degrees and faster response time than a conventional LCD. The IC-A220's display has a wide active area, allowing operating frequencies to be maximized in the display, while operating status can be shown on both top and bottom of the display.

Large Switch Buttons

The IC-A220 has large switch buttons on the front panel. The most frequently used FLIP-FLOP (Frequency exchange) switch button is designed large enough to be pushed with ease. All switch buttons and knobs are illuminated with pure-white backlighting, which are the same color as the OLED display.

Auto Squelch Function

The squelch sensitivity is automatically adjusted in accordance with the noise level to eliminate annoying background noise and unwanted signals.

Quick Squelch Adjustment

The auto and manual squelch including squelch level can be quickly adjusted with the Volume knob. The squelch test function temporarily opens the squelch and allows you to monitor signals.

GPS Memory Function

When connected to an external GPS receiver* equipped with an airport frequency database, the frequency data such as nearby airports can be transferred and made available in the IC-A220.

* Ask us for available GPS receiver details.

Auto Dimmer

The auto dimmer function sets display and key backlighting brightness. The ICA220’s high sensitivity light sensor covers a wide illumination range.

External Dimmer Control

By connecting to an external dimmer control system on the aircraft, the ICA220’s dimmer function can be linked with the aircraft dimmer level.

Intercom Function

The IC-A220 has a built-in voice activated intercom function allowing the pilot to talk with the copilot via the headset. The IC-A220 has adjustable audio level and squelch control functions.

Remote Control Capability

You can remotely control the FLIP-FLOP (frequency exchange), intercom and recall switches via the rear panel connector.

8.33 kHz Channel Spacing

The IC-A220 allows switching between 8.33 kHz and 25 kHz frequency steps in the menu mode.

* Use of 8.33 kHz channel spacing may be prohibited depending on country.

Memory Channels

The IC-A220 has 20 memory channels and 20 history memory channels respectively. Often used memory channels can be instantly recalled. Group memory channels are organized into 10 memory channels by five groups (total 50 channels). Weather channel scanning function searches for weather channel signals.
