Headset Not Included

The NFlightMic is designed to be a universal microphone allowing pilots to take advantage of high-end noise cancelling headsets available on the consumer electronics market. While we cater to Bose products because of their quality and dominance in the market, the NFlightMic is compatible with any headset with a 2.5mm audio input jack. This makes the NFlightMic a truly universal and future-proof solution

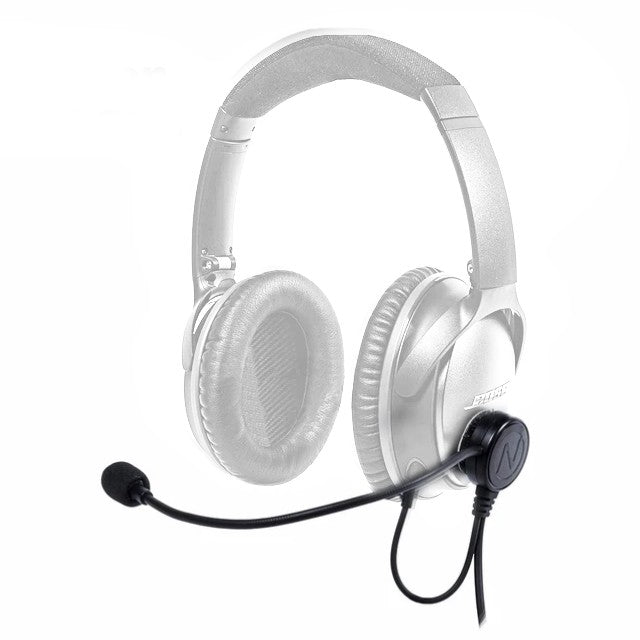

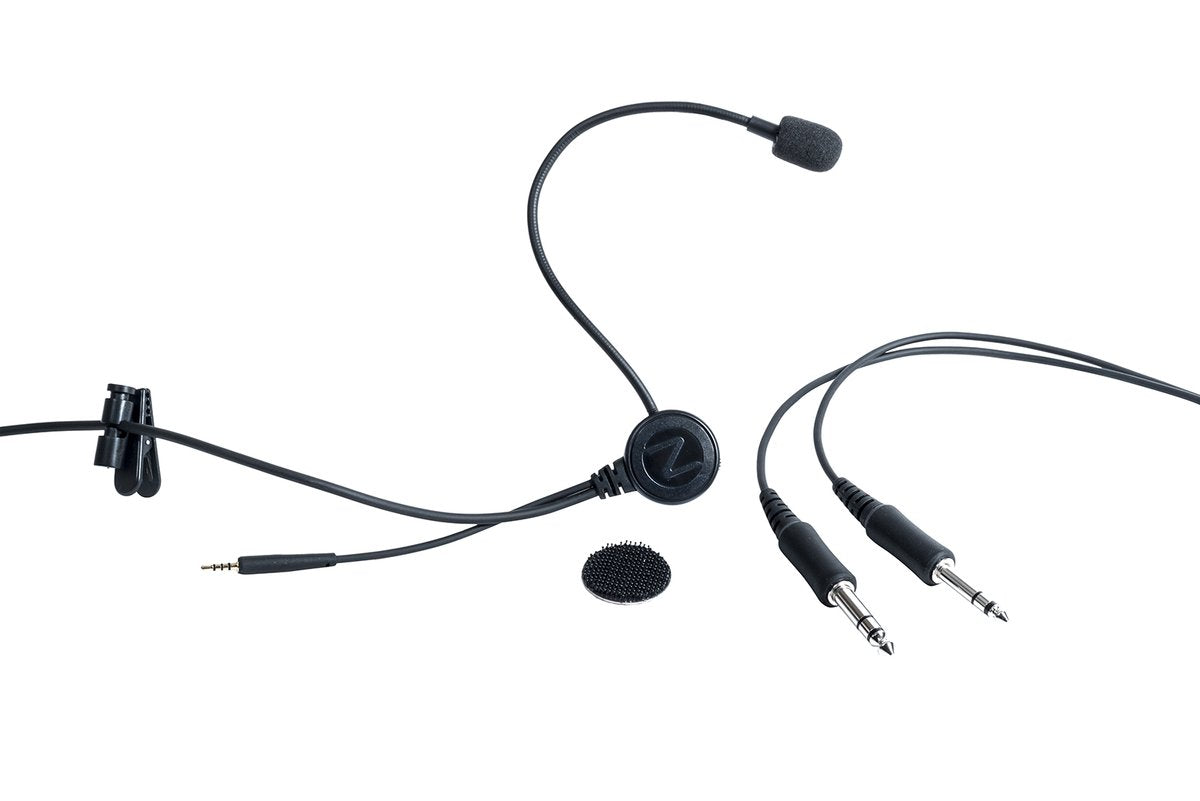

How it works: The NFlight Nomad is an aviation microphone that can be attached to any headset using the included 3M Dual Lock.

The NFlight Nomad has a 2.5mm audio output that can be plugged into the headset's auxiliary audio input.

The NFlight Nomad plugs into standard PJ or twin-plug jacks on any fixed-wing aircraft. It is also available in Airbus and helicopter version.

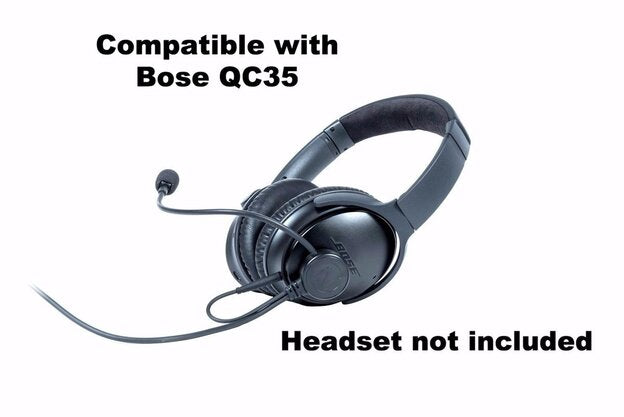

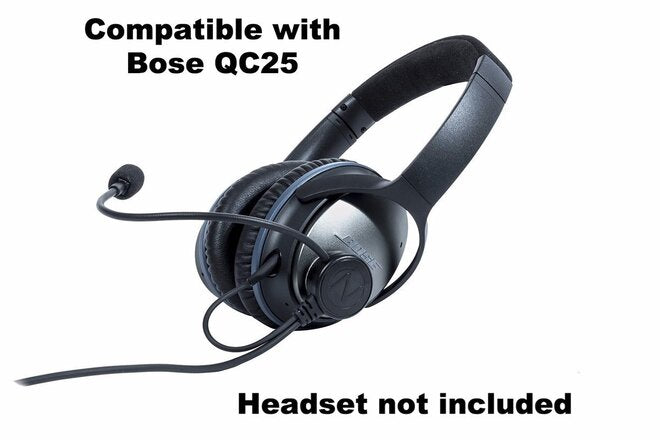

Compatible with: Bose QC25, Bose QC35, Bose QC35ii or any other headset with a 2.5mm auxiliary audio input. Please note: The Bluetooth capability of the Bose QC35 is disabled when the mic is plugged in.

Can also be easily converted to be compatible with headsets with 3.5mm auxiliary audio inputs with the use of a 2.5mm-to-3.5mm adapter

Popular headsets with a 2.5mm-to-3.5mm adapter: Sony 1000 XM2 & XM3





TECHNICAL SPECIFICATIONS

General:

Connections: Standard twin-plug PJ-style 3/16-inch and 1/4-inch aviation connectors (or helicopter, according to your selection)

Audio output: 2.5mm, 3-pole male connector

Cable length: 2 meters or 78 inches

Audio output cable length: 10 centimeters or 4 inches

Flexible boom microphone length: 20 centimeters or 8 inches

Output volume: adjustable

Attachment to headset: 3M Dual Lock circles (3M adhesive is removable without a trace.)

Included accessories: shirt clip for strain relief, two extra 3M Dual Lock pads



Microphone:

Noise-canceling electret

Frequency response: 200 Hz - 6000 Hz

Maximum SPL: 114 dB

Terminating impedance: 220-2200 ohms

Operating voltage: 8V-16V DC

 HEADSET NOT INCLUDED
